309S / 309RS

309S / 309RS

Posicionador inoxidável de esfera com hexágono interior
Corpo: Aço inoxidável 1.4305
Esfera: Aço Inoxidável temperado 1.4034

Categorias: , .

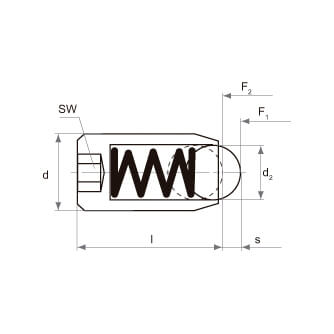

Ref. d d2 l s SW N
F1 F2
W309S-3 M3 1,5 9 0,45 1,5 2,2 3
W309S-4 M4 2,5 10 0,8 2,0 6 12
W309S-5 M5 3,0 14 0,9 2,5 7 13
W309S-6 M6 3,5 15 1,0 3,0 9 15
W309S-8 M8 5,0 18 1,5 4,0 20 35
W309S-10 M10 6,0 23 2,0 5,0 25 45
W309S-12 M12 8,0 26 2,5 6,0 35 60
W309S-16 M16 10,0 33 3,5 8,0 65 110
W309S-20 M20 12,0 43 4,5 10,0 80 120
W309S-24 M24 15,0 48 5,5 12,0 100 150
W309RS-4 M4 2,5 10 0,8 2,0 10 20
W309RS-5 M5 3,0 14 0,9 2,5 13 30
W309RS-6 M6 3,5 15 1,0 3,0 24 40
W309RS-8 M8 5,0 18 1,5 4,0 40 60
W309RS-10 M10 6,0 23 2,0 5,0 60 90
W309RS-12 M12 8,0 26 2,5 6,0 75 115
W309RS-16 M16 10,0 33 3,5 8,0 115 190
W309RS-20 M20 12,0 43 4,5 10,0 115 210
W309RS-24 M24 15,0 48 5,5 12,0 125 240

Mola standard
Mola reforçada

Temperatura máxima de trabalho: 250ºC
Sob pedido, podemos fornecer posicionadores com pressões de mola especiais.
